How To Setup RabbitMQ Cluster On Centos 7


In this article we are going to setup RabbitMQ Cluster on CentOS 7 Operating system. RabbitMQ is an Open Source message-queuing software called a message broker or queue manager. We can say , it is a software where queues can be defined, applications may connect to the queue and transfer a message onto it. The queue-manager software stores the messages until a receiving application connects and takes a message off the queue. The receiving application then processes the message in an appropriate manner. A message can include any kind of information for example, it could have information about a process/task that should start on another application may be on another server or it could be just a simple text message.

It is a fast, nimble, and resilient messaging system that just keeps going and going. If you’re interested in the Internet of Things, you must need to catch onto Rabbit MQ.


The basic requirement for RabbitMQ Cluster setup is to have minimum 2 nodes with CentOS 7 that we will using in this articles. Setup their FQDN and basic network settings and make sure that you are connected to the Internet.

In this article we will be using two Linux CentOS 7 servers with following host names.

RabbitMQ Master Server:

[root@linux ~]# hostname

RabbitMQ Slave Server:

[root@node2 ~]# hostname

Make sure that your both servers are date with latest updates and patches by running the following command with root or sudo user privileges.

 yum -y update

Installing ERLANG

After basic system setup, we are going to start installation of RabbitMQ’s main dependencies such Erlang. To install Erlang on our system, we will be using the latest EPEL repository. Let’s run the following command to install the latest EPEl release.

 yum install epel-release

epeal release

Once the EPEL release has been installed on your system, then you can install Erlang on CentOS 7 by issuing the following command.

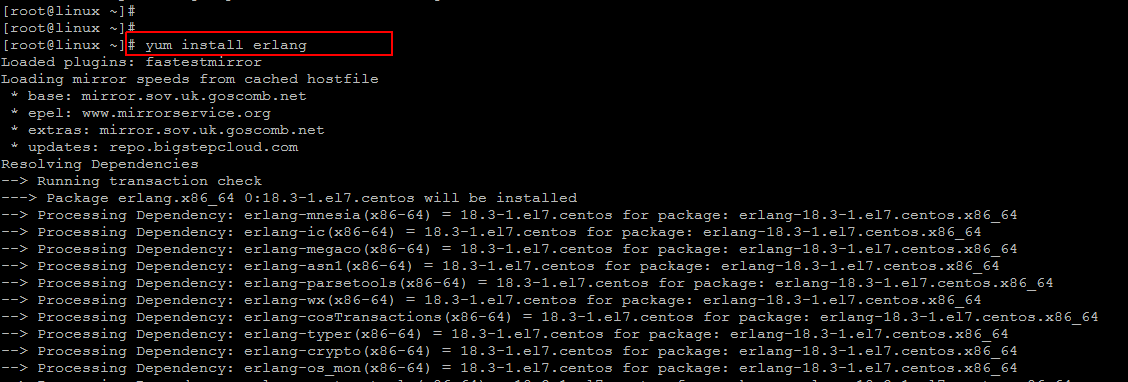

 yum install erlang

Erlang Installation

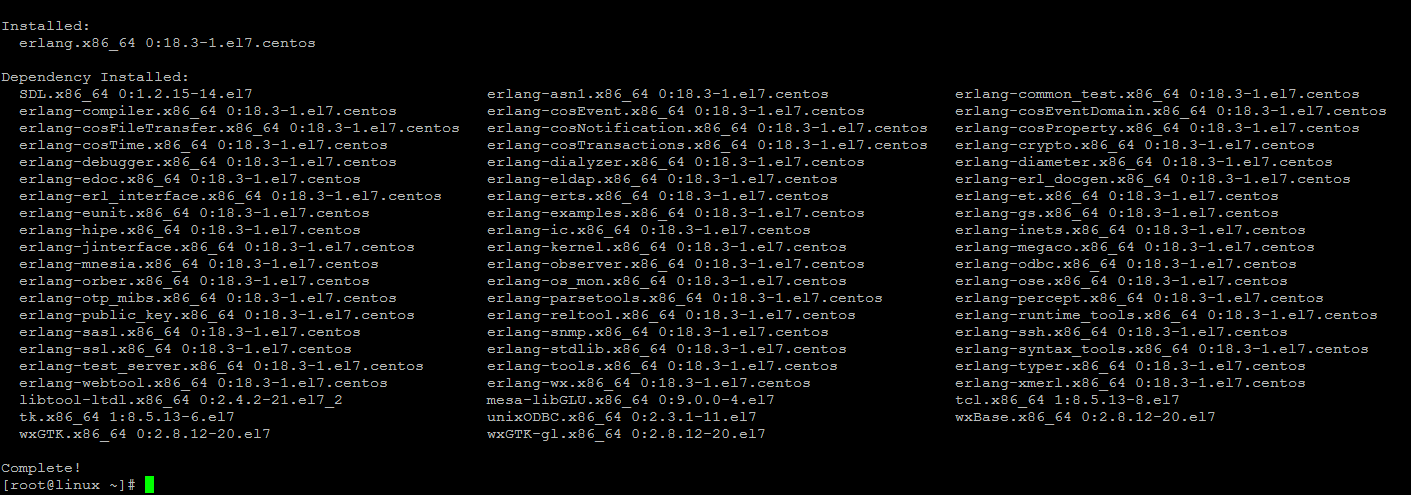

after resolving the dependencies, you will be asked to proceed or not. Press ‘y’ key and hit enter to continue. This will install Erlang and its all required dependencies on your system as shown.

erlang and dependencies

Installing RabbitMQ

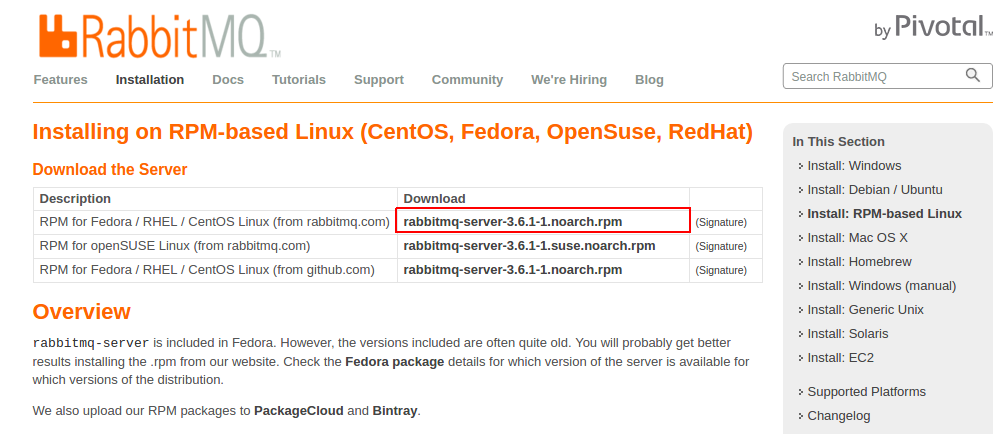

After completing the installation of Erlang, now we are going to install RabbitMQ using its latest RPM package available on RabbitMQ Resource Page.

RabbitMQ RPM

Let’s copy the download source address and run the following ‘wget’ command to download the RPM package on your system.


Then run the command below to install the RabbitMQ RPM package on your system.

 rpm -i rabbitmq-server-3.6.1-1.noarch.rpm

Installing rabbitmq

Now we have installed RabbitMQ server on both of our nodes. start is service and check the status using below commands.

 rabbitmqctl status

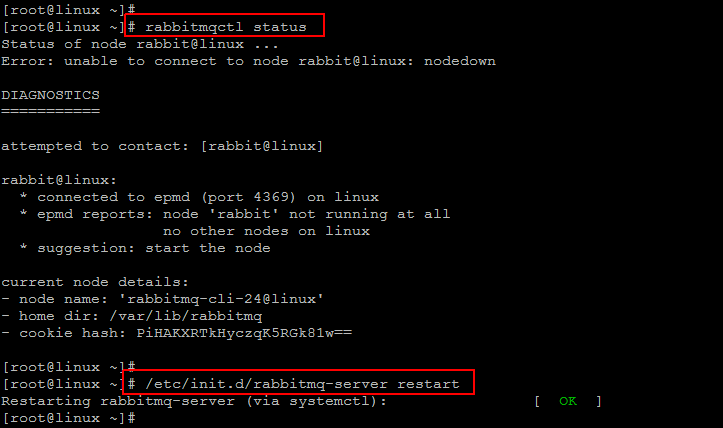

You might the below error , run the below command and check the status again.

 /etc/init.d/rabbitmq-server restart

rabbitmq status

 rabbitmqctl status

Once you have restarted RabbitMQ services you should see the following output on both nodes.


RabbitMQ Cluster Setup:

In order to create a RabbitMQ cluster, first choose your fisrt node which is going to be the Master.
In our case we will using out ‘linux’ node. There’s a cookie file which resides on each one of the nodes, but in order to join all nodes into a cluster, this cookie file needs to be identical on all machines in the cluster, use the cookie file from the Master node and copy it to the rest of the nodes.

You can find this under below path.

 [root@linux ~]# cat /var/lib/rabbitmq/.erlang.cookie

Sample output:


Now copy this key o all of your current node that you want to join with the cluster and change its permissions using the follow commands.

 chown rabbitmq:rabbitmq /var/lib/rabbitmq/*
  chmod 400 /var/lib/rabbitmq/.erlang.cookie

Now we will run the commands to join each node to the cluster using below command

 rabbitmqctl stop_app
 rabbitmqctl join_cluster --ram rabbit@node_name
 rabbitmqctl start_app

In order to check the status of your cluster run the below command.

 rabbitmqctl cluster_status


 /usr/sbin/rabbitmqctl cluster_status

Here is the sample output:

 Cluster status of node rabbit@node2 ...

Enable RabbitMQ Management Plugin

Our RabbitMQ Cluster has been installed and setup using two CentOS 7 nodes, let’s run the following commands to enable RabbitMQ management plugin.

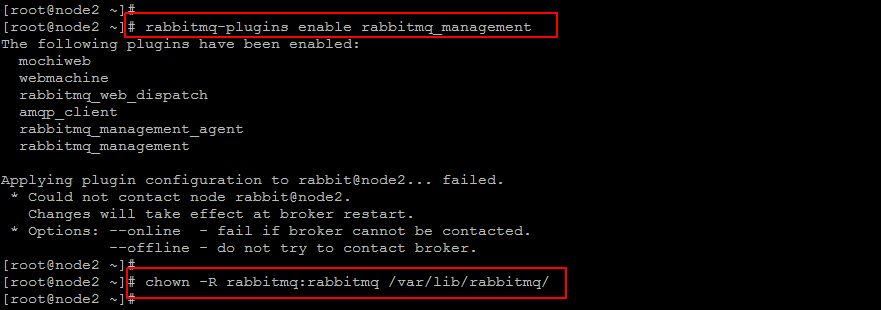

 rabbitmq-plugins enable rabbitmq_management
 chown -R rabbitmq:rabbitmq /var/lib/rabbitmq/

Plugin management

You can do the same by going to the directory where the RabbitMQ is installed.

 cd /usr/lib/rabbitmq/lib/rabbitmq_server-3.6.1
 sbin/rabbitmq-plugins enable rabbitmq_management

The rabbitmq_management plugin is a combination of the following plugins. All of the following plugins will be enabled when you execute the above command:

  • mochiweb
  • webmachine
  • rabbitmq_web_dispatch
  • amqp_client
  • rabbitmq_management_agent
  • rabbitmq_management

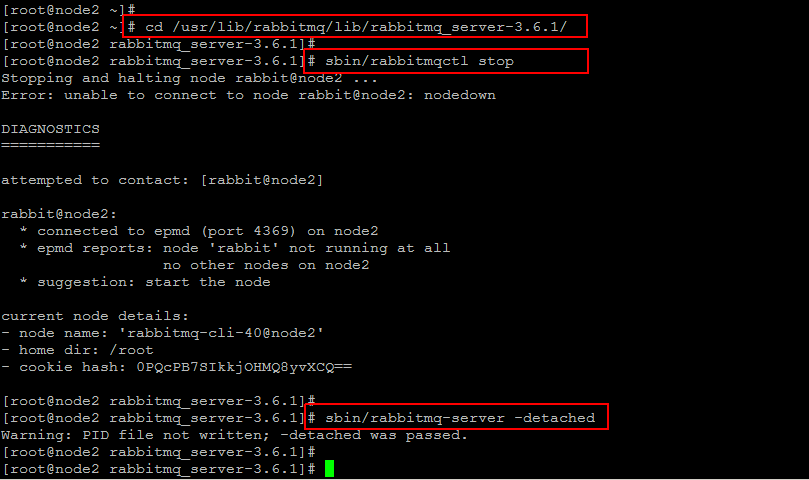

After enabling the rabbitmq_management plugin you should restart the RabbitMQ server as shown below.

 sbin/rabbitmqctl stop
 sbin/rabbitmq-server -detached

Restart RabbitMQ

RabbitMQ Web Management:

Now you access your RabbitMQ server from any of your web browser with mentioned below port.


The default user name and passowrd of RabbitMQ Management console sn ‘guest’, ‘guest’ . But you can also create new admin user using below commands.

 rabbitmqctl add_user mqadmin mqadmin
 rabbitmqctl set_user_tags mqadmin administrator
 rabbitmqctl set_permissions -p / mqadmin ".*" ".*" ".*"

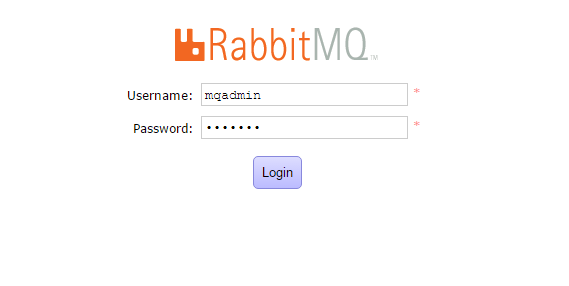

Login to RabbitMQ

After providing the right credentials you be directed towards the RabbitMQ Dashboard where you can configure and utilize it awesome features.

RabbitMQ Dashboard


That’s it. We have successfully installed and configured RabbitMQ cluster along with its Web management console. RabbitMQ runs with its standard configuration by default, so you don’t need to be panic about its configurations. Now let’s start using it and explore its multiple features.
